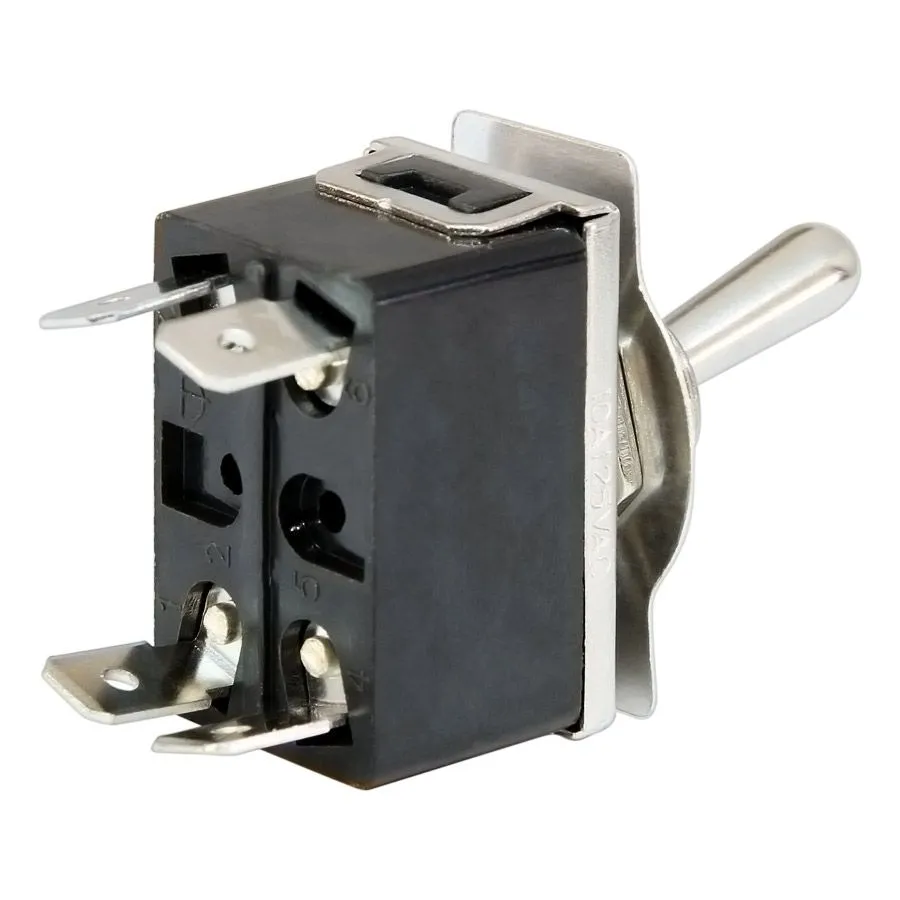

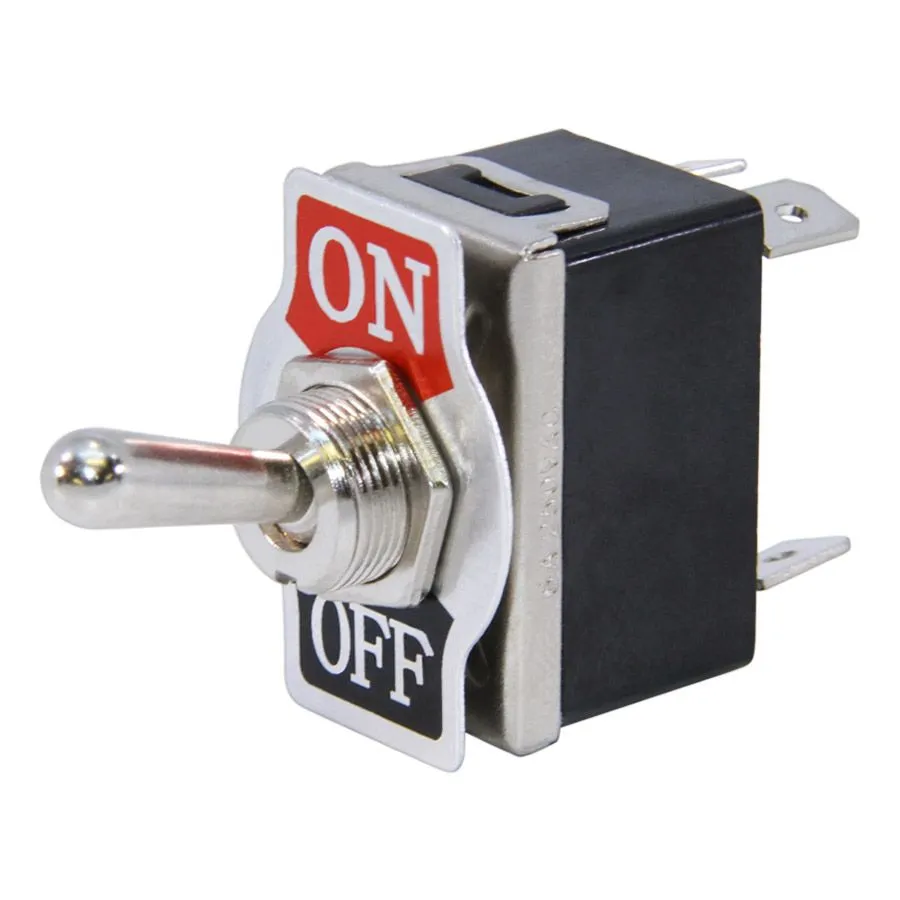

2-Position Toggle Switch - ON/OFF - D.P.S.T - 125V - 10A - 4 Pins Nouveau

Features:

• Series: KN3

• 10 A, 125 V AC - 6 A, 250 V AC

• D.P.S.T. (4 Contacts) - ON/OFF

• Handle: 17.5 mm x ø 6 mm

• Hole: M12 x 0.75 (ø 12.2 mm)

• Blade Terminal: 6.4 mm (0.250 in)

• Contact Resistance: 50 mO max

• Insulation Resistance: 500 V DC, 1000 MO min

• Dielectric Strength: 1,500 V AC, 1 minute

• Operating Temperature: -25°C ~ +85°C

• Electrical Life: 10,000 Cycles
