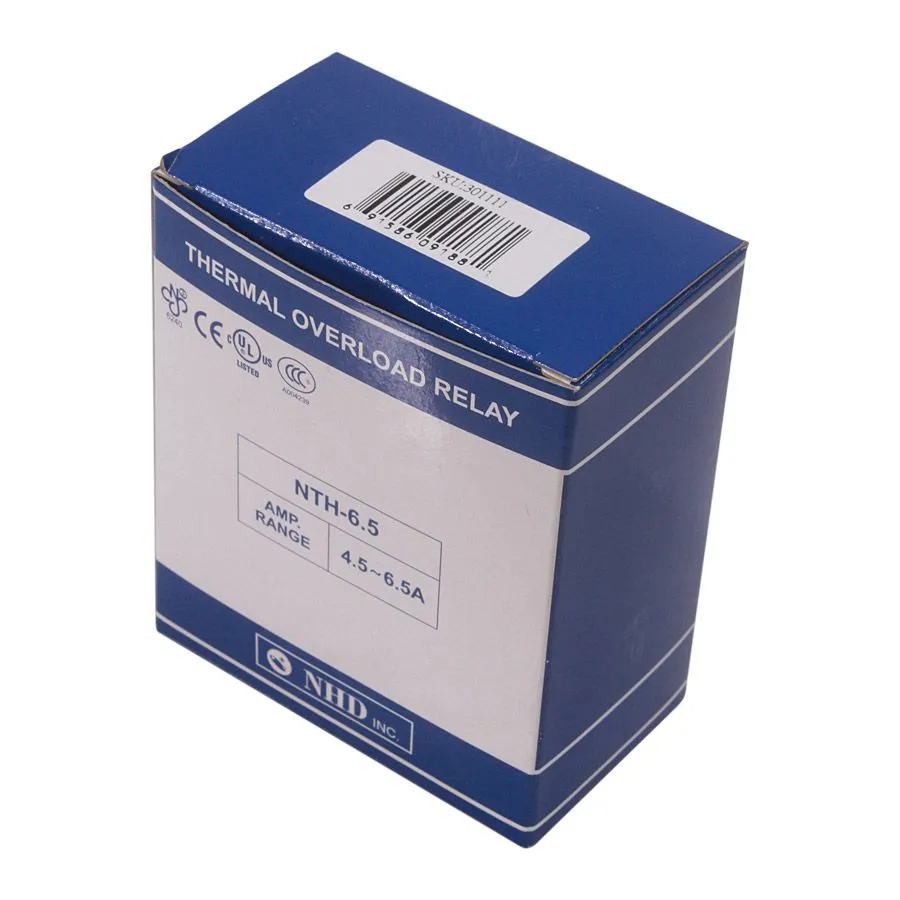

NHD - 4.5-6.5 A Thermal Overload Relay for C-09D Contactors # NTH-6.5 Nouveau

NHD - 4.5-6.5 A Thermal Overload Relay for C-09D Contactors # NTH-6.5

Features :

For use to protect AC motor from breakage or overload phase.

• Current: 4.5 – 6.5A
• Ui: 600 Vac, Ith: 6A
• 95 N.C. -o  o-96
• 97 N.O. -o  o- 98
• Tripping Current: FLA*1.25
• Ambient Temperature of 40°C
• For C-09D & SMC-09 Type Contactors
• Phase Failure Protection
• Manual or Automatic Reset
• IEC/EN: 60947-4-1 / 60947-5-1
• Wire Size: 14AWG
• JIS 8325
• BS 5424
• VDE 0660
• Maker: NHD
• Model: NTH-6.5
• UPC Code: 691586091881
• Inner: 1
• Master: 50
• Product height: 4.5 cm
• Product width: 7.5 cm
• Product length: 9 cm
• Product weight: 0.147 kg

The product image is for illustrative purposes only.
The country of origin and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, Lumatex 2000 cannot be held responsible for any discrepancies.
