6-24 V Gear Motor Nouveau
6-24 V Gear Motor
0 DA

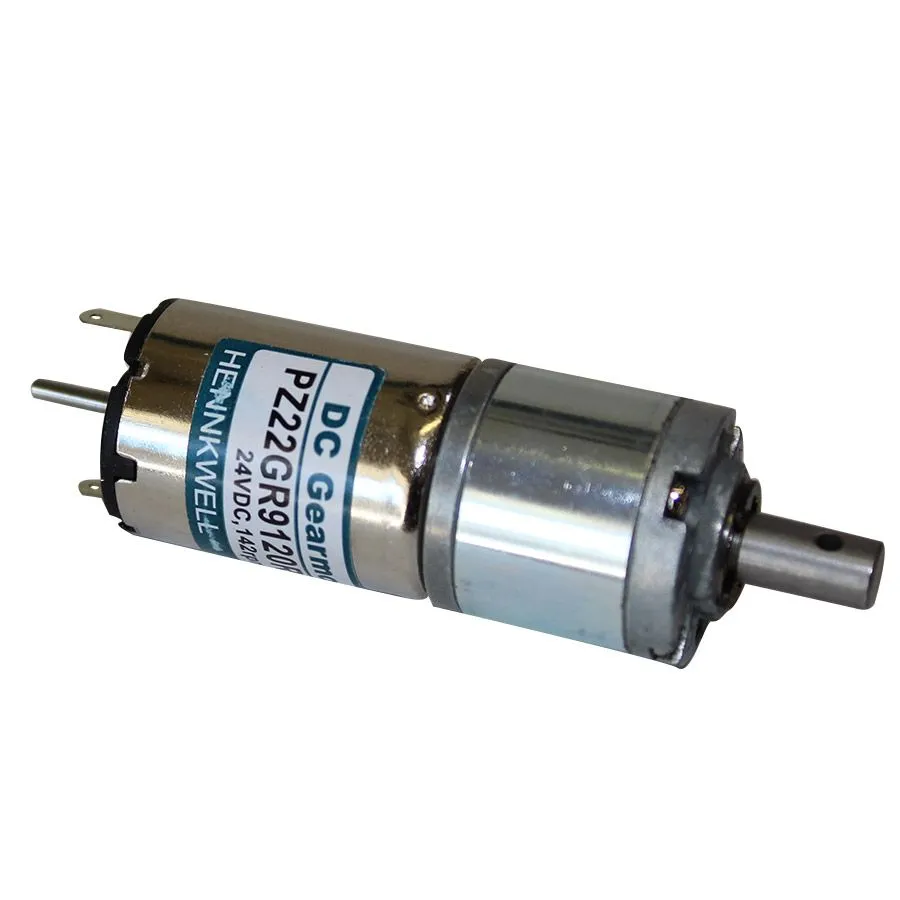

6-24 V Gear Motor
-
MFG: Hennkwell
-
P/N: PZ22GR9120R-084BBH.
-
Voltage Range: 6-24VDC.
-
Rated Voltage: 24VDC
-
Dual shaft, Dual Ball Bearings, instrument grade motor with planetary gearhead.
-
Current: 0.1A @ No Load 0.2A @ Rated Load 1.3A @ Stall
-
RPM: @24Vdc ~142 No Load 113 @ Rated Load.
-
Rated Load: 1.5kg/cm Rear
-
Shaft: Front: 6mm Dia X 14mm (Operates @ Gearhead RPM)
-
Shaft: Rear: 2mm Dia. X 9mm (Operates @ Motor RPM)
-
4 front mount M2x0.4 threaded mounting holes
-
Solder lug terminals.
-
L: 53mm Body DIA: 22mm WT: .2
