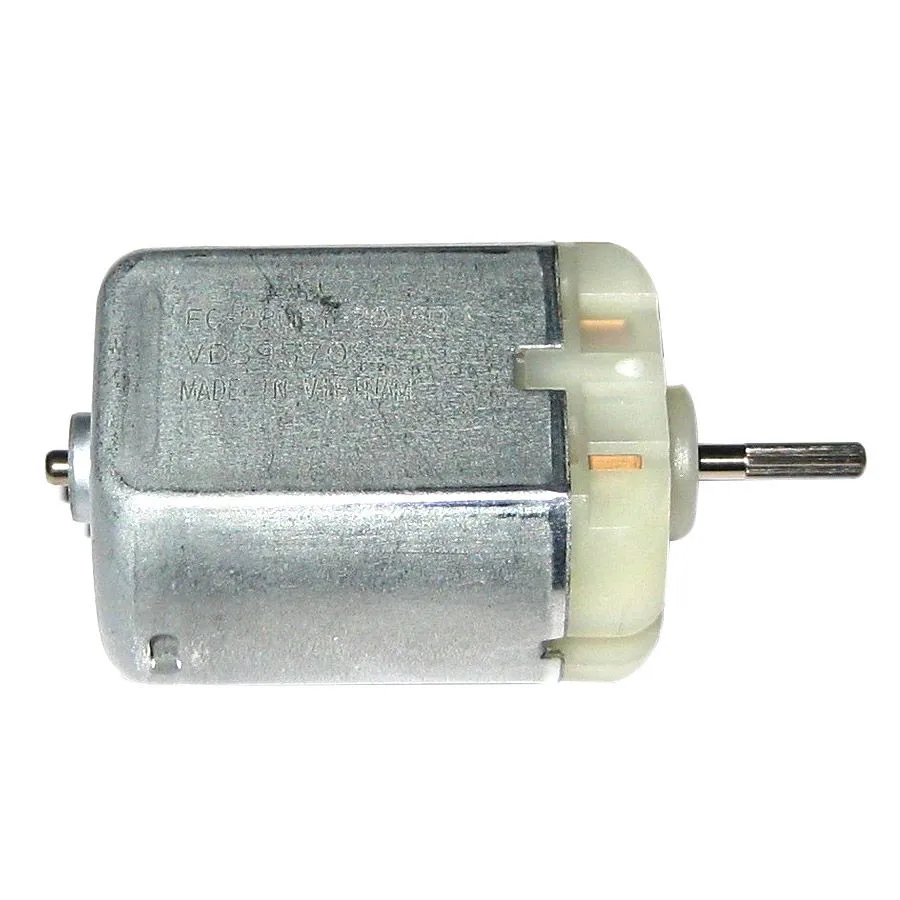

Hobby Electric Motor Nominal 12V-Operating 8-16V Nouveau

Hobby Electric Motor Nominal 12V-Operating 8-16V

Features:

• Model: FC-280PT-20150
• Voltage: 12 V DC nominal
• No load current: 81 mA
• Recommended operating voltage range 6 V DC to 18 V DC
• Full load (maximum efficiency @ 12 V DC) performance characteristics:
  Speed: 10,310 RPM
  Current: 560 mA
  Torque: 42.2 g-cm (4.14 mN-m)
  Power output: 4.47 watts
• Stall torque: 335 g-cm (32.9 mN-m)
• Stall current: 3.90 Amperes
• Can be operated in either direction, simply reverse power supply polarity
• Dimensions (not including shaft): 30.5 mm long x 24.2 mm wide x 18.3 high
• Splined shaft dimensions: 9.8 mm long x 2.0 mm diameter
• Push-in style terminals on shaft extension end of motor
• Applications: automotive power mirrors, door locks, etc.

Product details

• Model: FC-280PT-20150

• Inner: 200

• Master: 400

• Product height: 4.5 cm

• Product width: 2.5 cm

• Product length: 2 cm

• Product weight: 0.035 kg
