Parker - 2, 3 and 5 Valve Instrument Manifolds, Needle Pattern, Remote Mount - H Series Nouveau

Parker - 2, 3 and 5 Valve Instrument Manifolds, Needle Pattern, Remote Mount - H Series

Features :

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Inlet / Outlet Connection : 1/2 Inch NPT Female

Seat Material : Metal to Metal

Body Material : 316 Stainless Steel

No of valves : 02

Operating pressure : 414 Bar / 6000 PSI

Operating Temperature : PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F

Fluid Type : General Gaseous and Liquid Media

Mounting options : Carbon Steel brackets and bolts, Stainless Steel brackets and bolts

Body Pattern : Short

Body Type : Flat Barstock

Vent Size : 1/4 Inch NPT Female

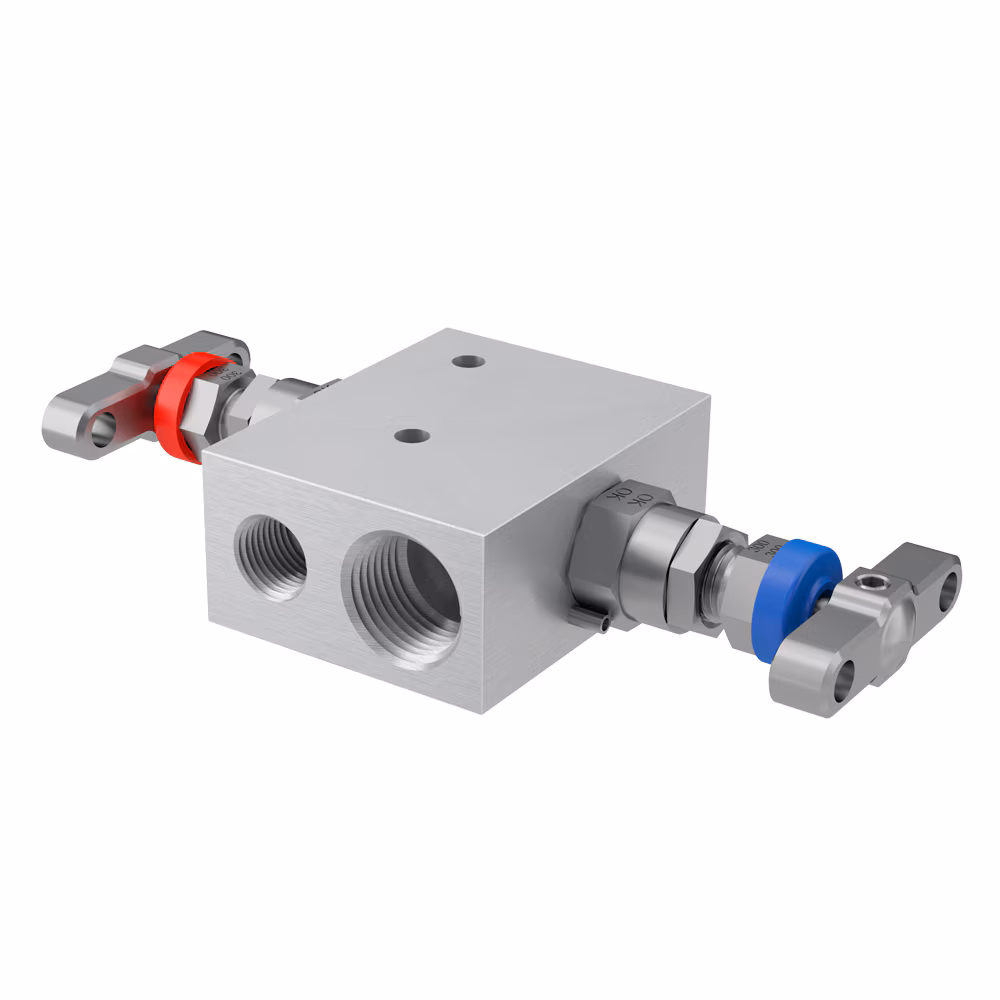

The product image is for illustrative purposes only.
The country of origin and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, Lumatex 2000 cannot be held responsible for any discrepancies.
